CM600HA-12H

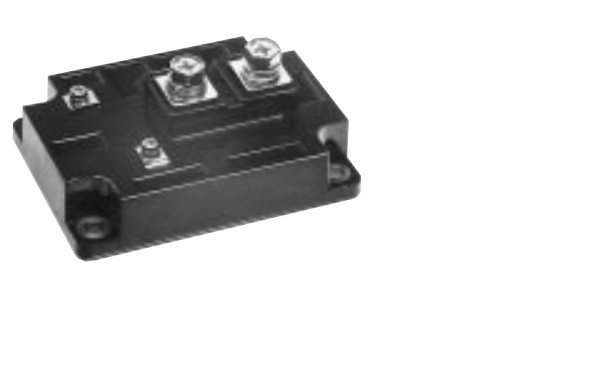

CM600HA-12H Description

CM600HA-12H is an Insulated Gate Bipolar Transistor (IGBT) module designed for use in high power applications, such as motor control, renewable energy systems, and industrial automation. The IGBT module features a high current rating of 600A and a high voltage rating of 1200V, making it suitable for use in high voltage and high current applications. It also has a low on-state voltage drop, which reduces power losses and increases efficiency. The CM600HA-12H IGBT module has a compact design and a built-in temperature sensor for improved thermal management. It also features a built-in overcurrent protection circuit to protect the IGBT from damage during operation. Overall, the CM600HA-12H IGBT module is a reliable and high-performance component that is ideal for use in a wide range of high power applications.

Summary of Features

CM600HA-12H is a(n) 1200V, 600A IGBT Modules. .

Target Applications

CM600HA-12H and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.
