CM600DY-24A

CM600DY-24A Description

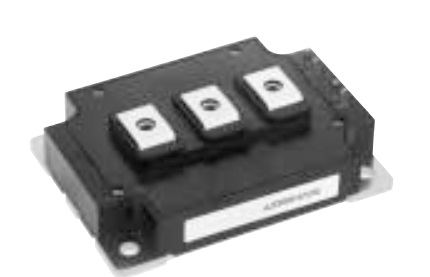

CM600DY-24A is an IGBT (Insulated Gate Bipolar Transistor) module manufactured by Mitsubishi Electric. IGBTs are widely used in power electronics applications as they combine the advantages of bipolar junction transistors (BJTs) and metal-oxide-semiconductor field-effect transistors (MOSFETs), providing high voltage, high current, and high-speed switching capabilities. The CM600DY-24A IGBT module has a maximum voltage rating of 1200V and a maximum current rating of 600A, making it suitable for high power applications such as motor drives, power inverters, and welding equipment. The module features a compact and rugged design, with a ceramic insulator and a metal baseplate, which ensures reliable operation even in high-temperature environments. It also has a range of protection features, including overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP), to ensure safe and stable operation. The CM600DY-24A IGBT module uses a half-bridge topology, meaning it has two IGBTs connected in a series, with a gate driver circuit to control their switching. It also has a freewheeling diode to protect against reverse voltage spikes. Overall, the CM600DY-24A IGBT module is a high-performance and reliable component suitable for use in various applications that require high power switching capabilities.

Summary of Features

CM600DY-24A is a(n) 1200V, 600A IGBT Power Transistor Module. .

Target Applications

CM600DY-24A and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.
