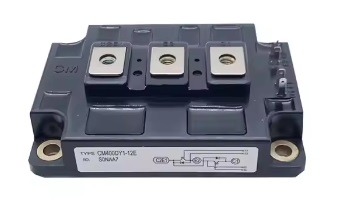

CM400DY1-12E

CM400DY1-12E Description

is a product code for a dual IGBT (Insulated Gate Bipolar Transistor) module manufactured by Mitsubishi Electric Corporation, a Japanese multinational electronics and electrical equipment company. The module is designed for use in high-power applications such as motor drives, power supplies, and industrial automation. It contains two IGBT power switches and two anti-parallel diodes in a half-bridge configuration, all of which are insulated from the heat sink. The CM400DY1-12E module has a maximum collector-emitter voltage of 1200V, a maximum collector current of 400A, and a maximum power dissipation of 1080W. It operates at a frequency range of up to 20kHz and has a low inductance design for high switching speed. The module has a compact and robust design with a weight of 380g and dimensions of 100mm x 62mm x 17.2mm. It also has a built-in temperature sensor for monitoring and protection against overheating.

Summary of Features

CM400DY1-12E is a(n) 600V, 400A IGBT Modules. .

Target Applications

CM400DY1-12E and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.

Download CM400DY1-12E Datasheet

Datasheet not available
