CM1400DU-24NF

CM1400DU-24NF Description

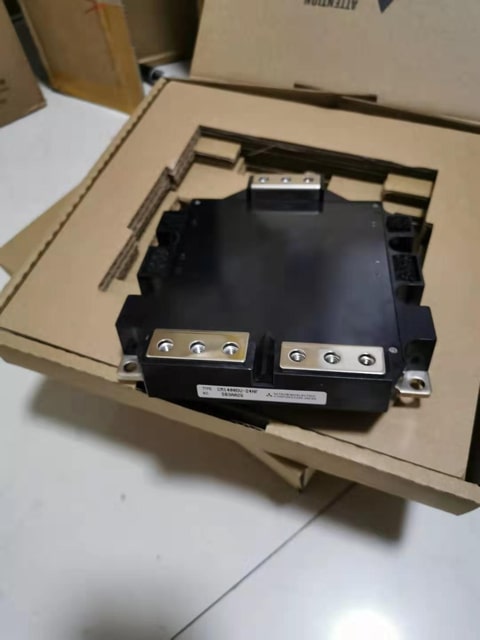

is a type of Insulated Gate Bipolar Transistor (IGBT) module used in power electronics applications. It is produced by Mitsubishi Electric Corporation and designed for high-power switching applications. The IGBT module has a current rating of 1400A and a voltage rating of 1200V. It consists of two IGBTs in a half-bridge configuration, and each IGBT is equipped with a freewheeling diode. The module also includes a thermistor for temperature sensing and over-temperature protection. The CM1400DU-24NF IGBT module is designed with low-loss and high-speed switching characteristics, making it suitable for use in various power electronics applications, such as motor drives, renewable energy systems, and industrial automation. It is also designed with a compact and robust package, which enables easy installation and provides high reliability in harsh operating environments.

Summary of Features

CM1400DU-24NF is a(n) 1400V, 1200A IGBT Modules. .

Target Applications

CM1400DU-24NF and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.
