FZ1200R12KF4

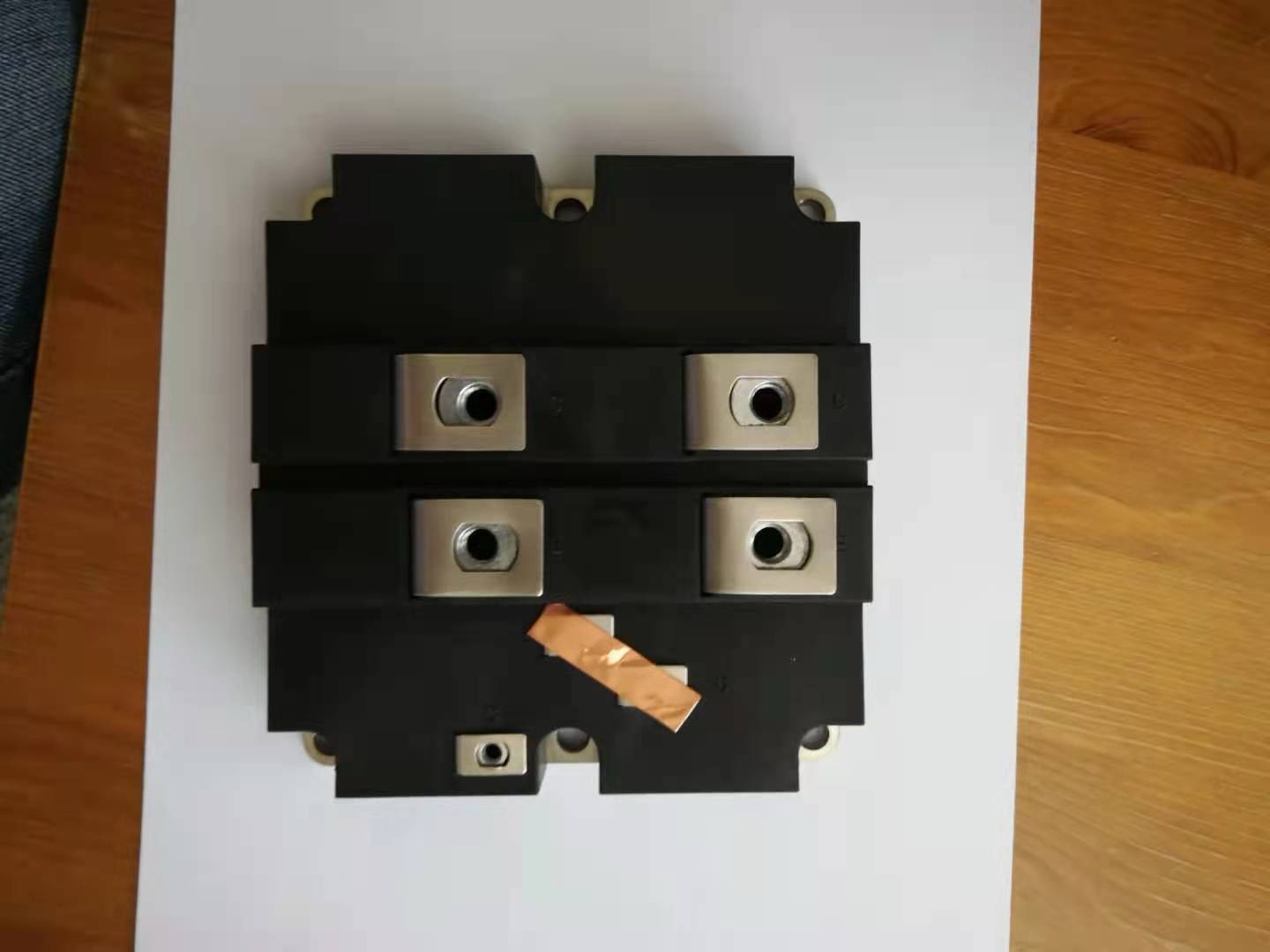

FZ1200R12KF4 Description

is a high-power insulated gate bipolar transistor (IGBT) module manufactured by Infineon Technologies. This module is designed for use in high-power applications such as motor drives, power supplies, and industrial equipment. Here are some key specifications for the FZ1200R12KF4: Maximum collector-emitter voltage (Vce): 1200 volts Maximum collector current (Ic): 1200 amperes Maximum power dissipation (Pd): 7200 watts Gate-emitter voltage (Vge) range: +/- 20 volts Operating temperature range: -40 to 150 degrees Celsius The FZ1200R12KF4 features a high switching frequency and low on-state voltage drop, making it ideal for high-power applications that require fast switching speeds and low power losses. It incorporates a high-speed IGBT module and a free-wheeling diode, which provides reliable and efficient power switching. This IGBT module is designed with a compact and robust package, which reduces the overall footprint and weight of the system. It also features a built-in overcurrent protection circuit and temperature sensor, ensuring safe and reliable operation. Overall, the FZ1200R12KF4 is a high-performance IGBT module that is well-suited for use in a wide range of high-power applications. Its compact size, high efficiency, and robust design make it an ideal choice for use in modern power systems.

Summary of Features

FZ1200R12KF4 is a(n) 1200V, 1200A IGBT Modules. .

Target Applications

FZ1200R12KF4 and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.
