FZ1200R12HE4

FZ1200R12HE4 Description

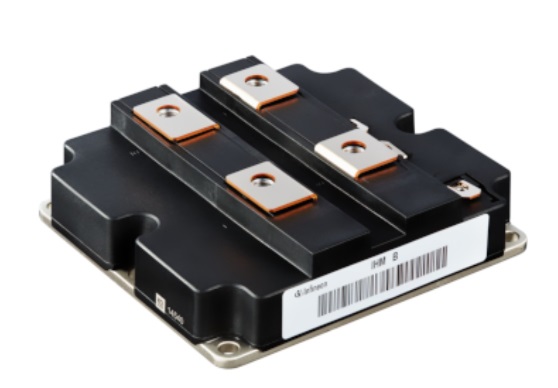

is an Insulated Gate Bipolar Transistor (IGBT) module manufactured by Infineon Technologies. IGBTs are semiconductor devices used for switching and amplifying electrical power in a wide range of applications, including motor drives, power converters, and renewable energy systems. IGBTs combine the advantages of MOSFETs (Metal Oxide Semiconductor Field-Effect Transistors) and bipolar transistors, allowing for high voltage and current handling capabilities with low power dissipation. The FZ1200R12HE4 IGBT module features a blocking voltage of 1200V, a current rating of 1200A, and a collector-emitter saturation voltage of 2.2V. It has a dual-chip design with a low inductance module construction, making it suitable for high-power applications requiring fast switching and low losses. The module has a compact and robust package design, with a base plate made of aluminum oxide ceramic for high thermal conductivity and electrical isolation. It also features a press-fit pin technology for easy and reliable mounting onto a heatsink. Overall, the FZ1200R12HE4 IGBT module is a high-performance and reliable device suitable for demanding applications that require high power density and efficient operation. Its high current rating and low saturation voltage make it suitable for applications that require high switching frequency and high efficiency, such as inverter systems for renewable energy sources or motor drives in electric vehicles.

Summary of Features

FZ1200R12HE4 is a(n) 1200V, 1200A IGBT Modules. .

Target Applications

FZ1200R12HE4 and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.
