CM400DU-12NFH

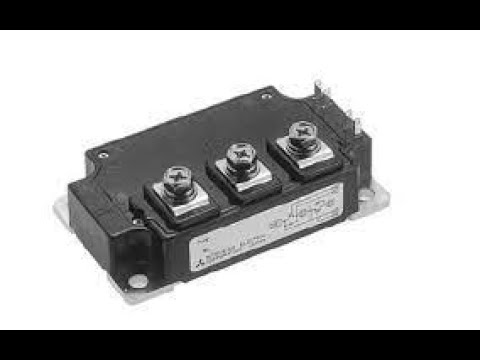

CM400DU-12NFH Description

is an Insulated Gate Bipolar Transistor (IGBT) module manufactured by Mitsubishi Electric. The IGBT is a type of power semiconductor device that combines the high-speed switching capability of a MOSFET with the high-voltage and high-current handling capabilities of a bipolar transistor. The CM400DU-12NFH IGBT module has the following specifications: Collector-Emitter Voltage (Vces): 1200V Collector Current (Ic): 400A Maximum Power Dissipation (Pd): 2200W Gate-Emitter Voltage (Vges): +/- 20V Operating Temperature: -40°C to +150°C This IGBT module is designed for use in high power applications, such as motor drives, power supplies, and renewable energy systems. It features low switching losses and high thermal performance, making it an efficient and reliable option for high power applications. The module also includes built-in protective features such as overcurrent and overvoltage protection, making it safer to use in high power applications.

Summary of Features

CM400DU-12NFH is a(n) 600V, 400A IGBT Modules. .

Target Applications

CM400DU-12NFH and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.
