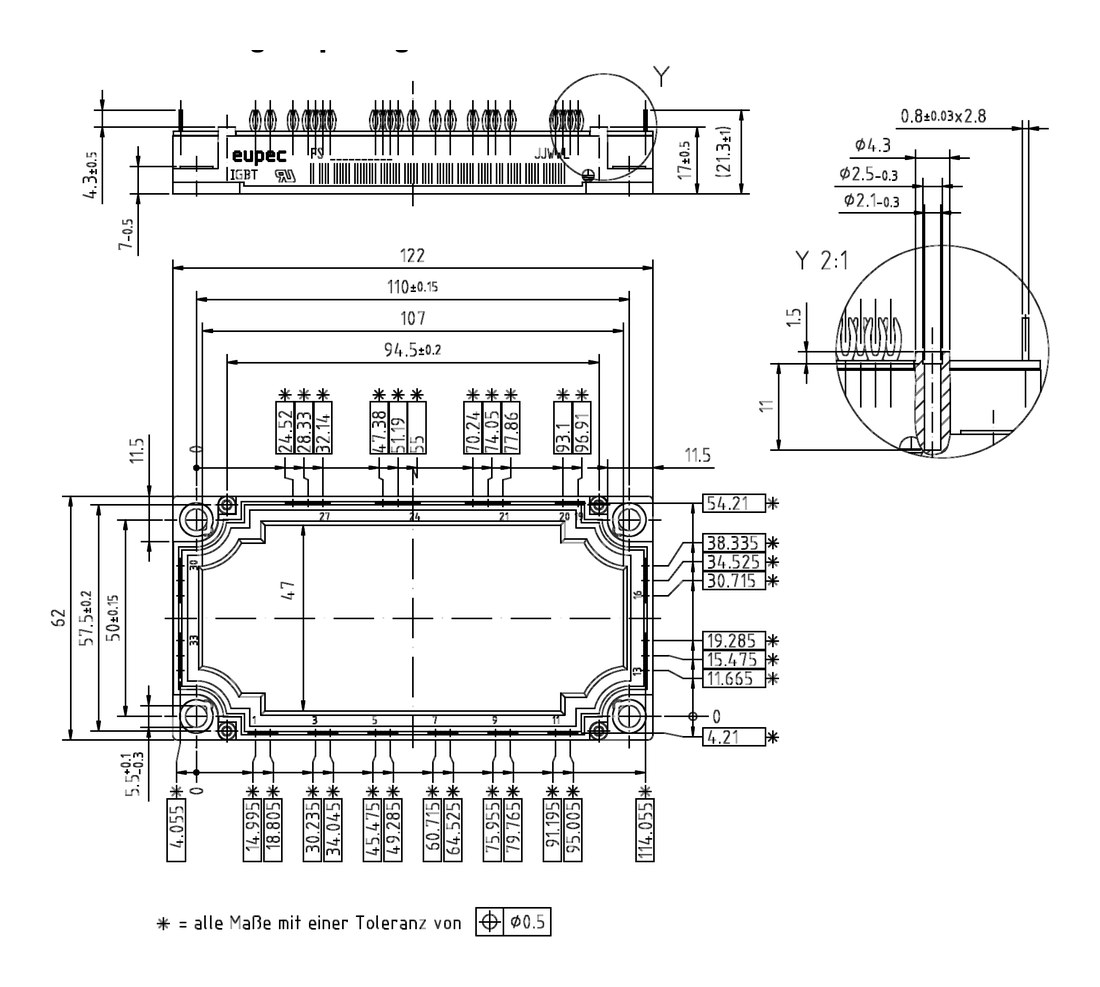

FS150R12KT4-B11

FS150R12KT4-B11 Description

Eupec Infineon power module

Summary of Features

FS150R12KT4-B11 is a(n) 1200V, 150A IGBT Modules. .

Target Applications

FS150R12KT4-B11 and other IGBT (Insulated Gate Bipolar Transistor) transistor modules find applications in various industries and systems where high power switching is required. Some common applications include:

• Industrial Drives: IGBT modules are widely used in variable frequency drives (VFDs) and servo drives for controlling the speed and torque of electric motors in industrial machinery.
• Renewable Energy: Inverter systems for solar photovoltaic (PV) and wind power generation utilize IGBT modules for converting DC power from solar panels or wind turbines into AC power suitable for the grid.
• Electric Vehicles (EVs): IGBT modules are employed in the power electronics of electric and hybrid vehicles for converting the battery DC voltage to the AC voltage required by the electric motor.
• Railway Traction: IGBT modules are utilized in traction systems for electric trains and trams to control the speed and acceleration of the vehicles.
• Power Supplies: High-power IGBT modules are used in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for efficient power conversion and voltage regulation.
• Welding Equipment: Inverter-based welding machines use IGBT modules for precise control of welding current and voltage.
• HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems utilize IGBT modules in variable speed compressors and fans for energy-efficient operation.
• Medical Equipment: IGBT modules are employed in various medical equipment such as MRI machines, X-ray generators, and medical lasers for power control and conversion.
• Power Transmission: High-voltage direct current (HVDC) transmission systems utilize IGBT modules in converters for efficient long-distance power transmission.
• Motor Drives: IGBT modules are used in motor drives for controlling the speed and torque of large industrial motors in applications such as pumps, fans, and compressors.

These are just some examples, and the use of IGBT modules continues to expand into new areas as technology advances and the demand for high-power switching solutions grows.

Download FS150R12KT4-B11 Datasheet

Datasheet not available
